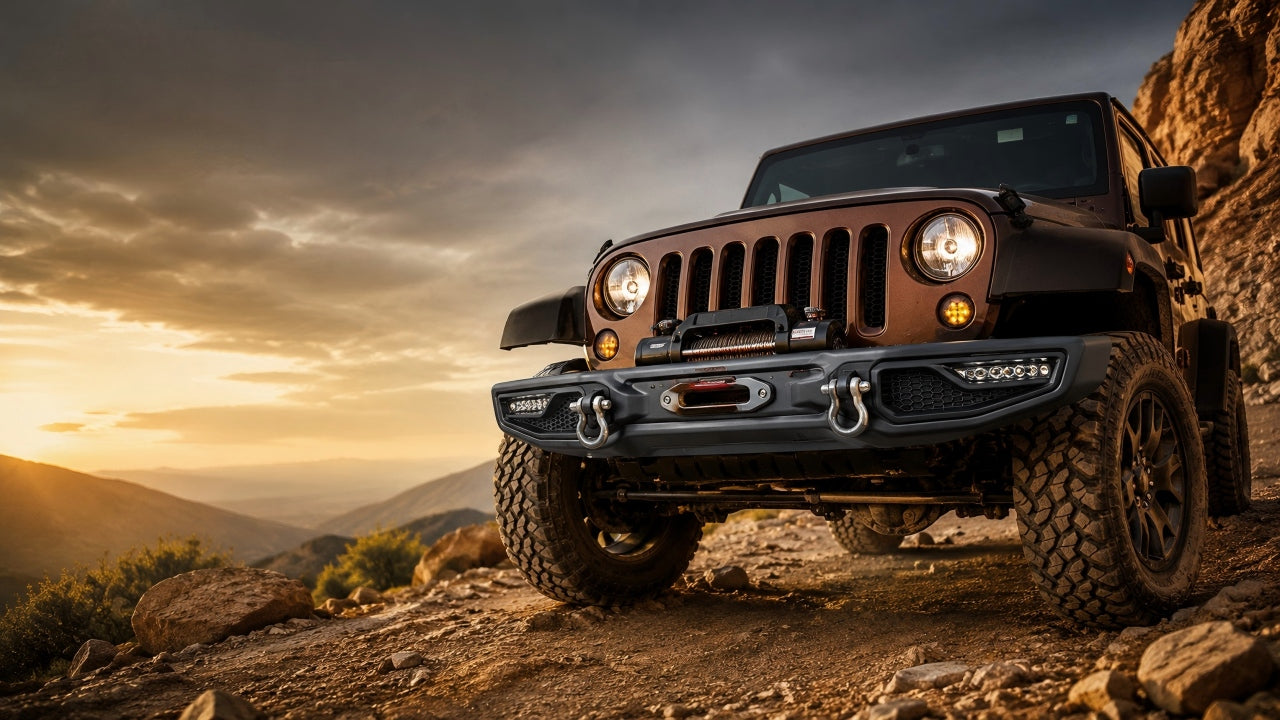

Jeep JK Steel Bumper Guide: Winch Bumpers for Wrangler JK
The Jeep Wrangler JK shipped from the factory with a stamped-steel beam covered by a plastic fascia — a unit built to satisfy pedestrian impact regulations, not to handle the approach angles, rock contact, and recovery loads that trail driving produces. For JK owners moving past easy-rated terrain, replacing the factory bumper is one of the first structural upgrades that makes a measurable difference. This guide covers everything specific to the 2007–2018 Jeep Wrangler JK: bumper types, sizing for a JK winch bumper, fitment specs, installation, and what to look for in a Jeep JK steel bumper that will hold up under real recovery loads.
What Is a Jeep Wrangler JK Steel Bumper?
A Jeep Wrangler JK steel bumper is a bolt-on replacement for the factory front or rear fascia assembly on 2007–2018 Wrangler JK models — including the two-door and four-door (Unlimited) variants. Unlike the factory unit, which uses a thin stamped-steel beam and plastic outer cover, aftermarket JK steel bumpers are fabricated from 3/16" or 1/4" mild steel plate, powder-coated, and designed to carry recovery loads the factory bumper cannot.
The JK generation was produced from 2007 through 2018, making it one of the most widely modified Jeep platforms in the aftermarket. Steel bumper options for the JK range from full-width tube-style units to stubby high-clearance designs, with winch-capable variants — commonly called JK winch bumpers — representing the majority of trail-focused sales.
The frame horn bolt pattern on the JK is consistent across all model years and both body configurations (2-door JK and 4-door JK Unlimited). Six bolts across two frame horns, 15mm socket, torque spec 41 ft-lbs on reinstall. Any properly designed aftermarket JK steel bumper bolts directly to these mounting points without cutting or welding.
Wrangler JK Bumper Types: Full-Width, Stubby, and Hybrid
Three primary configurations exist in the JK steel bumper market, each with different approach angle, recovery, and aesthetic tradeoffs:
Full-Width Steel Bumpers
Full-width bumpers extend to or near the outer edge of the JK body — typically 62–66 inches total width on a four-door JK Unlimited. They provide the widest D-ring mount spread (typically 48–52 inches center-to-center), the most lateral protection for the frame horns and wheel wells, and the largest surface area for winch and light integration.
Full-width bumpers are the standard choice for overlanding builds and builds prioritizing recovery capability over approach angle. The tradeoff is a slight reduction in approach angle compared to stubby designs — on a stock-height JK, a full-width bumper sits approximately 16–18 inches above the ground at the lowest point, producing an approach angle of 35–38 degrees depending on exact design.
Stubby and Mid-Width Bumpers
Stubby JK bumpers shorten the outer wings, pulling the bumper ends inboard of the front tires — typically 38–46 inches total width. This design improves approach angle by reducing the horizontal protrusion that contacts terrain first on steep entry points. On a lifted JK with 35-inch tires, a stubby bumper can produce a usable approach angle above 45 degrees.
The tradeoff is reduced lateral frame protection and a narrower D-ring spread — typically 30–38 inches center-to-center. Most stubby designs maintain a winch mount, making them a viable JK winch bumper option for builds where clearance is the priority.
Hybrid and Tube-Style Bumpers
Hybrid designs combine a steel plate main body with tube steel wings or end caps. Tube-style bumpers use round or square tube construction throughout, reducing weight by 15–25% compared to equivalent solid-plate designs while maintaining structural integrity at the winch mount and D-ring positions. Tube designs are common on high-clearance JK builds running 37-inch tires and significant lift, where bumper weight at the nose has a more pronounced effect on front axle load.
Sizing a Jeep JK Winch Bumper: Load Ratings and GVW
A JK winch bumper integrates a winch mount plate directly into the bumper structure — rated to carry the line pull of the winch under full recovery load. The winch plate is the structural link between the winch and the JK's frame, and its load rating must match or exceed the winch's rated line pull.
The standard winch sizing formula is minimum 1.5× the vehicle's gross vehicle weight (GVW). For the Jeep Wrangler JK:
| JK Variant | Stock GVW | Minimum Winch | Loaded Build |
|---|---|---|---|
| JK 2-door (2007–2018) | ~3,900 lbs | 6,000 lb | 9,500 lb |
| JK Unlimited 4-door (2007–2018) | ~4,300 lbs | 6,500 lb | 9,500 lb |
The 9,500 lb recommendation for loaded builds accounts for the weight of a steel bumper (50–85 lbs), winch (35–40 lbs), 35-inch tires, lift kit hardware, and a full trail gear load — which together add 400–700 lbs to stock GVW on a fully built JK. A 9,500 lb winch pulling at layer 3 of the drum (a common scenario when spool-out exceeds 50 feet) delivers approximately 7,200–7,600 lbs of effective pull — still above the recovery requirement for a loaded JK in most stuck situations.
Winch plate load rating on the bumper must equal or exceed the winch rating. A bumper with a 9,500 lb plate cannot safely anchor a 12,000 lb winch under full-load recovery tension. Maiker Jeep Wrangler JK steel front bumpers carry an integrated winch plate rated to 12,500 lbs, with load transfer engineered through all factory frame mounting points — not through the outer bumper body alone.
RECOMMENDED PRODUCTS
JK Bumper Fitment: What Changes Between 2007 and 2018
The Jeep Wrangler JK ran 11 model years (2007–2018) with two mid-cycle updates that affect bumper compatibility:
- 2007–2014 JK: No factory fog lights integrated into the bumper fascia on base and Sport trims. Sahara and Rubicon trims include fog light wiring and cutouts in the factory fascia. Steel bumper replacements for this range need to account for fog light relocation or deletion.
- 2015–2018 JK: Minor grille and lighting updates but the frame horn bolt pattern and mounting geometry are unchanged. Steel bumpers designed for 2007+ JK fit the 2015–2018 range without modification.
- 2-door vs. 4-door (Unlimited): The frame horn mounting pattern is identical between the two-door JK and the four-door JK Unlimited. A bumper listed as "JK fitment" fits both body configurations. Width differences between 2-door and Unlimited are handled by the outer wing design, not the center mount structure.
One fitment variable specific to the JK generation: the factory skid plate on Rubicon models extends forward and sits lower than the Sport and Sahara versions. Some full-width JK steel bumpers include a lower chin or integrated skid lip that interfaces with the factory skid — confirm clearance on the product spec sheet before ordering if you are running a Rubicon with the factory underbody protection in place.
Installing a Jeep JK Steel Bumper: Step-by-Step
A Wrangler JK front steel bumper installation requires two people for bumpers over 50 lbs and takes 2–3 hours including winch wiring on a first-time install. Tools needed: 15mm socket and ratchet, torque wrench, trim removal tool, wire crimper if splicing fog light connectors.
- Remove the factory fascia. Pull the push-pin clips along the wheel well lips (typically 8–12 clips per side). Disconnect the fog light wiring connectors and any sensor harness if equipped. The factory fascia lifts off the bumper beam once all clips are released.
- Remove the factory bumper beam. Six 15mm bolts across two frame horns. On 2007–2014 models these may be corroded — apply penetrating oil 30 minutes before removal if the vehicle has significant mileage or has lived in a salt-exposure region.
- Position the steel bumper. Second person supports the outer edge while the first person aligns the center mount holes to the frame horns. Hand-thread all six bolts before applying torque to any single bolt — this allows the bumper to self-align to the frame.
- Torque to spec. 41 ft-lbs on all six frame horn bolts. Do not substitute grade-5 hardware for grade-8 on the frame mount — the torque spec assumes grade-8.
- Route winch wiring. Run the positive cable from the battery through the factory firewall grommet or a dedicated grommet. Install the ANL fuse within 18 inches of the battery positive terminal — minimum 300A rated for a 9,500 lb winch. Route the winch control harness through the firewall to the dash switch location.
- Reconnect fog lights. Most JK steel bumpers include relocation tabs for the factory fog lights or cutouts in the steel face. If the bumper does not include fog light provisions, the fog lights can be deleted and the wiring capped, or aftermarket LED pods can be mounted to the light tabs in a similar position.
- Verify clearance. Turn the steering wheel lock-to-lock with the engine running and confirm no contact between the bumper end caps and the front tires at full steering lock. On stock-width JK builds this is not typically an issue; on builds running spacers or wheel offset changes, confirm before driving.
Steel vs. Factory Plastic: What the JK Bumper Upgrade Actually Changes
The functional difference between the JK factory bumper assembly and a steel aftermarket unit comes down to three capabilities the factory unit cannot provide:
Recovery anchor capacity. The factory JK bumper has no rated recovery point. The tow hooks on JK models are frame-mounted, not bumper-mounted — they carry load independently of the bumper. A steel bumper with welded D-ring tabs rated at 4.75-ton working load limit creates two dedicated recovery points at bumper width, improving recovery geometry for winch pulls, kinetic straps, and hi-lift jack base points.
Winch integration. The factory bumper cannot carry a winch. A JK winch bumper integrates the mount plate directly into the steel structure, distributing load through the frame horns. This is not a modification available for the factory plastic unit regardless of bracket design.
Rock and obstacle protection. 3/16" mild steel plate (yield strength approximately 36,000 psi) absorbs a direct rock strike or low-speed tree contact that cracks or shatters the factory ABS fascia. For trail-driven JKs, this protection extends to the radiator, power steering cooler, and transmission cooler lines that sit immediately behind the factory bumper.
The tradeoff is weight: a steel JK front bumper adds 45–85 lbs to the front axle. Most JK builds running a full steel bumper and winch benefit from a 2-inch front leveling kit to restore factory geometry and prevent accelerated front ball joint wear from sustained overload.
For Distributors and Off-Road Retailers: JK Bumper Sourcing
The 2007–2018 Jeep Wrangler JK remains one of the highest-volume aftermarket platforms in the off-road accessories market — a large installed base with an active modification culture and consistent replacement demand. Steel front bumpers are a primary SKU in JK accessory sales, and the winch-capable variant drives the majority of revenue in the category.
Maiker Auto manufactures Jeep Wrangler JK steel front bumpers at our ISO 9001-certified facility in Guangzhou, with production fitment verified via 3D laser scanning against OEM JK chassis geometry. Winch plate ratings are load-tested to the stated spec — not estimated from design calculation alone. Standard 10-bolt winch plate patterns are compatible with Warn, Smittybilt, Superwinch, and Rough Country winch models without adapters.
Wholesale pricing is available with tiered volume breaks, OEM private-label manufacturing for shops building a house-brand line, and US warehouse stock for 7–14 business day North American fulfillment. Lead times for production orders are typically 25–35 days ex-works on current SKUs. Contact the Maiker wholesale team at contact maike-auto for current pricing and MOQ.
Frequently Asked Questions
What size winch fits a Jeep Wrangler JK steel bumper?
Most JK steel winch bumpers accept winches with the standard 10-bolt mounting pattern, which covers the majority of units in the 8,000–12,500 lb range from major brands including Warn, Smittybilt, Superwinch, and Rough Country. For a stock 4-door JK Unlimited, a 9,500 lb winch is the practical minimum; for a loaded overlanding build with a full gear load and 35-inch tires, a 12,000–12,500 lb unit is the correct spec. Confirm the bumper's winch plate load rating matches or exceeds the winch's rated line pull before purchasing.
Do JK steel bumpers fit both the 2-door and 4-door Unlimited?
Yes. The frame horn bolt pattern and mounting geometry are identical between the 2007–2018 JK two-door and the JK Unlimited four-door. A bumper listed for "Jeep Wrangler JK" fits both body configurations without modification. The outer width of the bumper is determined by the wing design, not the center mount — so bumper width is a style and clearance choice, not a fitment variable between the two body styles.
Will a JK steel bumper fit a JL Wrangler?
No. The JK (2007–2018) and JL (2018–2024) Wrangler use different frame horn geometry and bumper mounting points. JK and JL bumpers are not interchangeable. If you are fitting a bumper to a 2018 model year Wrangler, confirm whether it is a JK (last production year of the fourth generation) or a JL (first production year of the fifth generation) — both were produced in 2018 and the model year alone does not determine the platform.
Do I need a lift kit when adding a steel bumper to my JK?
Not always, but it depends on the combined weight of the bumper and winch. A steel bumper under 55 lbs on a stock JK typically does not produce enough nose-down rake to require a suspension change. A bumper in the 65–85 lb range — particularly when paired with a 35–40 lb winch — will cause the front to sit noticeably lower and can accelerate front ball joint wear under sustained load. A 2-inch front leveling spacer restores stock geometry and is a recommended complement to any JK winch bumper installation.
What happens to the factory fog lights when I install a JK steel bumper?
Most quality JK steel bumpers include provisions for the factory fog lights — either cutouts in the steel face that allow the OEM fog light housing to mount in its original position, or relocation tabs that move the fog lights to a slightly different position on the bumper face. If the bumper you select does not include fog light provisions, the factory wiring can be capped and the fog light function replaced with LED pods mounted to the bumper's light tabs. Confirm fog light compatibility in the product specification sheet before ordering, particularly on 2007–2014 Sahara and Rubicon trims where fog lights are standard equipment.
Do you offer wholesale pricing on Jeep JK steel bumpers?
Yes. Maiker Auto manufactures Jeep Wrangler JK steel front bumpers direct from our ISO 9001-certified facility in Guangzhou, with tiered wholesale pricing for distributors and off-road modification shops. US warehouse stock supports 7–14 business day North American fulfillment. OEM private-label manufacturing is available including custom logos, powder coat colors, and private packaging. Contact the Maiker wholesale team for pricing and MOQ details →
